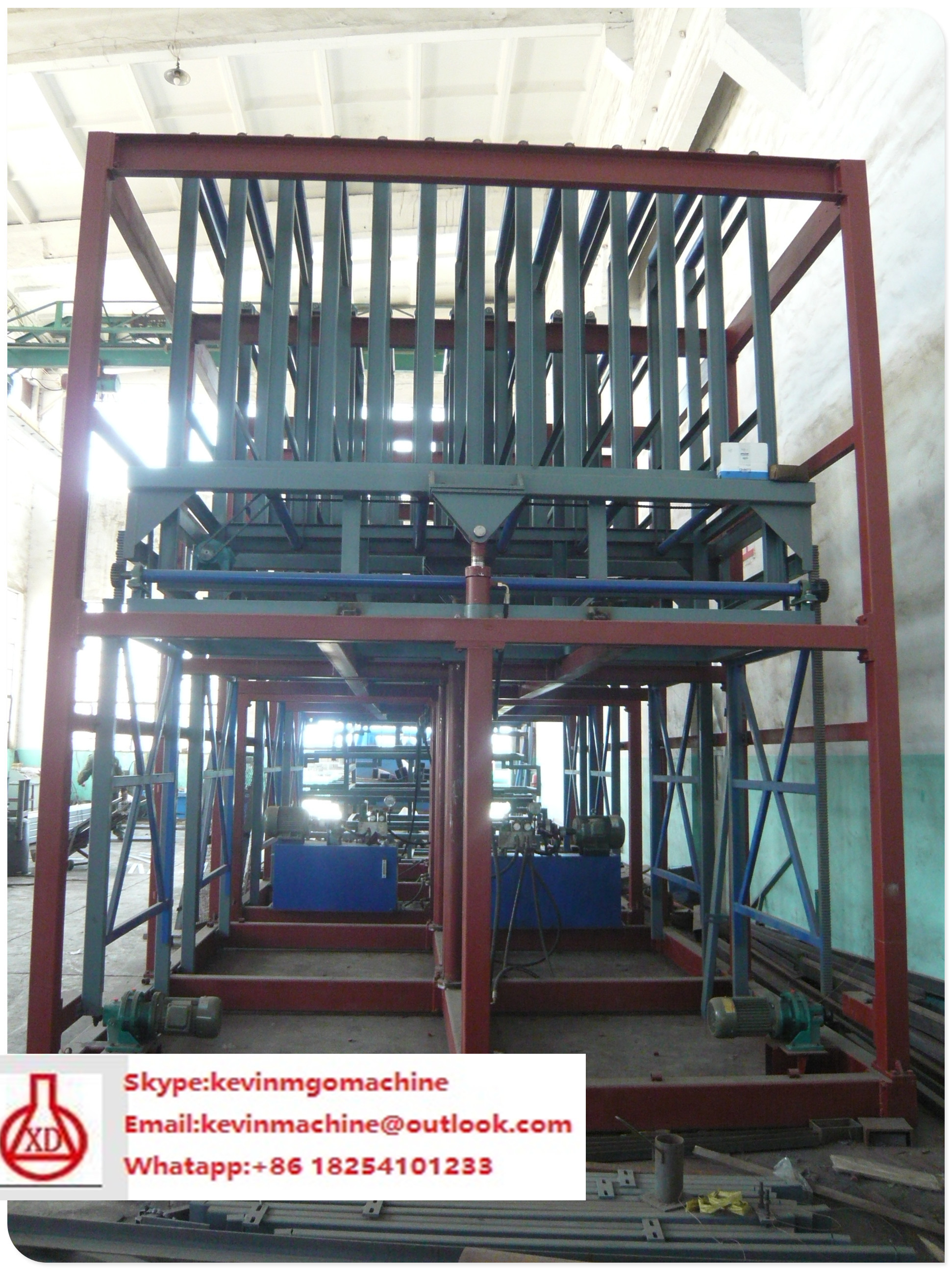

XD-E Automatic Mgo Sandwich Wall Panel Making Machine Energy Saving

XD-E Automatic Mgo sandwich wall panel forming machine With 2000 SQM

This whole production line can used to produce MGO door board, MGO board, Sanding mgo board, MGO foam board, fireproof board, cement board, EPS sandwich wall panel, lightweight wall panel.

It is the multi-functional production line for many kinds of modern construction materials, is well received by clients who focus on green environment-friendly buildings and energy-saving constructions.

I Equipment Feature

This machine adopts the technology of double-drive double-roller-extruding, and the product is formed once after sizing, material feeding, spreading no-woven cloth, compounding and repressing. The equipment runs stably with high automatic degree, and the specification of its product can be adjusted arbitrarily. The equipment actually realizes the industrial production-line of new model building wall board, and the product have even and glazed surface with high compactness. The equipment largely reduces the labor intensity of worker and thoroughly changes many shortages of the former casting forming with upright mould or flat mould, such as large mould usage, low recycling rate, required electrical heating or steam heating, single kind of product as well as the sound insulation and heat-preserving which don’t meet the market requirements.

II Project Feature

1. The source of the production raw materials is widely with no regional restriction. The product is made of sawdust, straw (rice hulls), many kinds of crop straw and inorganic material (such as talcum powder, infusorial earth and powder coal ash) after special technology. So this project have low production cost, small investment and fast effectiveness.

2. The equipment has high automatic degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during production.

3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about production technology without high temperature and high pressure.

Product Feature and Performance

Performance

Production Conditions

Wall board production line has workshop and raw material warehouse. Workshop: over 300m2-800

m2, worker: 10-16 person; fresh water; electricity:8-20KW

5. Benefit Analysis

(I) Cost accounting

Raw material: 19-25 Yuan/ m2 (according to different thickness); Wage: 1 Yuan/ m2

Water-electricity fee: 0.5 Yuan/ m2; Depreciation of the equipment: 0.2Yuan; Management fee: 1 Yuan/ m2

Total: 21.7 Yuan~27.70 Yuan/ m2

(II) Profit analysis: (Take the small-scale equipment as example), production: 800 m2 per day, at

the price of 58 Yuan/ m2 to sell,

and then the profit per day is that 800 m2 ×58 Yuan/ m2－800 m2×21.7~27.70＝29040~24240 Yuan.

6. Attention

1. Sign the contract printed by Industry and Commerce Bureau.

2. Provide many kinds of certification materials about state-level test report.

3. According to eight-hour production and automation degree, the light quality heat-preserving

composite wall board equipment can be divided into large, middle and small scale for your selection

. We will carry out one dragon service include technology, equipment, installation and testing to ensure

the qualified product.

After purchased the equipment, our company will take responsibility for trainning technical personnel

until he can get the skill.

There are many professional technical personnel in our company, they will offer consultation about the

equipment and technology as well as technical training on site for free. And they will go to your factory

for installation and testing for free.

Welcome you to our company for a site visit, we will service for you sincerely.

Shandong Chuangxin Building Materials Machinery Co., Ltd., as a new and high technology enterprise registered at provincial industrial and commercial department and a modern group enterprise integrated with scientific research, processing and trade mainly focus on research, development and popularization of decorating technique, building materials technology and machinery. Its many patent products were sold throughout China and some were exported to Russia, Southeast Asia, Hong Kong and Taiwan. We have had rich assets and intellectual property rights after many years, and in July 2004, our products were awarded as many laurels such as State Key New Product by State Ministry of Science and Technology, Ministry of Commerce, General Administration of Quality Supervision, Inspection and Quarantine and State Environmental Protection Administration. With this company got much economic benefit and social benefit, so it enjoys high popularity and good credit in the society. The company is composed of Machinery Factory, Technology Development Center, Decorating Materials Factory, Handicraft Development Center and Research Institute of Paint and Coatings, and it establishes cooperative relationship with Higher Educational Institutions and Scientific Research Academy in Beijing and Shandong. With perfect scientific research production base, rich material conditions and technical force and acute market feeling, the company reformed boldly and strengthened exchange and cooperation with the world, and at the same time made its technology and equipment always meet requirements of changing market. The above let this company ranks as a leading enterprise in the same industry. In the information times filled with opportunity and challenge, all employers of our company will abide by the management ideas of “Take Market as Principle, Take Scientific Technology as Forerunner” and carry forward the company spirit of “Only Innovation can bring competitive power and vitality”, to work towards to key technological breakthroughs and develop industry, and will exploit, develop and create wonderful tomorrow together with all friends on the new and high technology road.
