Steel Structure Board Making Machine , Lightweight Wall Panel Mgo
Board Machine

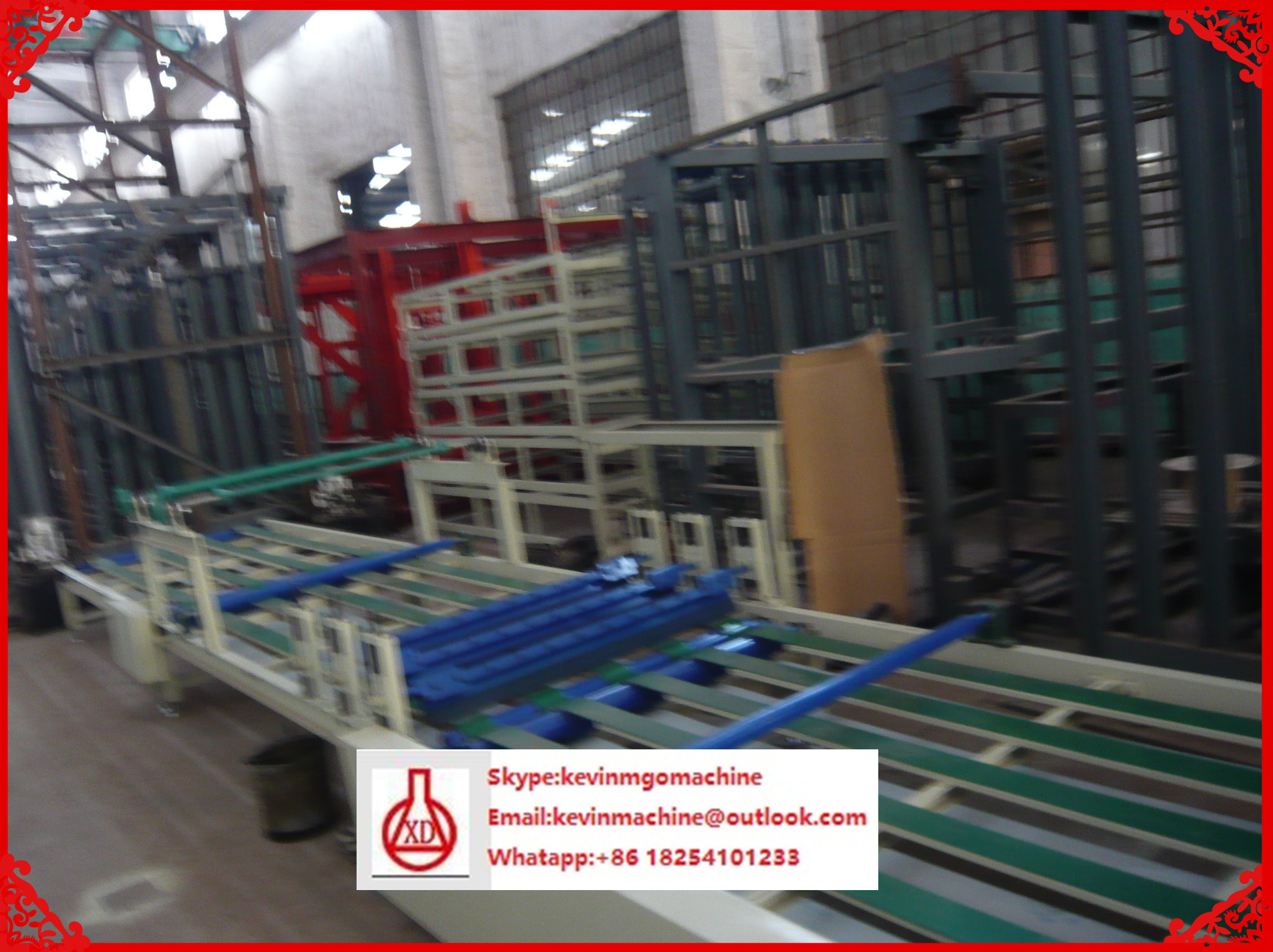

XD-E model mgo board making machine with 1500 capacity full
autoamtic
We are professional manufacturer of different kinds of lightweight
wall panel machines----precast hollow core wall panel machine, eps
concrete sandwich wall panel machine, ceramsite block machine,
fence wall panels made of construction waste etc. Our advantage is
that we not only make the machines, but also make the panels, so we
have rich experience.The most important part of our advantage is
not only about the machine, but also about the formulation. How to
make the best-quality panels at the lowest price according to the
materials which the customers have in their countries is our main
purpose. We can make the best formulation for our customers because
we have rich experience in this field. The materials of making this
kind of panels can be cement, fly ash, leca, perlite, eps, gypsum,
Mgo, Mgcl2/Mgso4, wood saw powder, crushed plant straws, etc.
1) Product quality: product quality is priority to the
international standard GB/T9775-1999 (equal to European Standard).
2) The gypsum board which produced by the gypsum board production
line is heat-resistant, fire-resistant, insulated, light,
nonpoisonous, little pollution, adjusting the humidity of the room.
3) We can offer a basket of services of design, producing,
installation, commissioning and training, as well as turnkey
project for customers.
No. | Test Item | National standard | Wall panel testing |
1 | Compressive strength | ≥3.5MPa | ≥3.7MPa |
2 | Drying shrinkage | ≤0.6mm/m² | 0.37mm/ m² |
3 | Hanging force | ≥1000N 24hours No 0.55mm crack in 24hours | ≥1000N 24hours No 0.55mm crack in 24hours |
4 | shock resistance | without crack shocked by 30kgs sandbag five times | without crack shocked by 30kgs sandbag five times |
5 | The bending failure load | ≥1.5 times of the self weight of the wall panel | ≥2.5 times of the self weight of the wall panel |
6 | radioactivity | Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 | Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 |
7 | density | ≤90kgs/m² | ≤43kgs/m² |
8 | Air insulation of sound | ≥35dB | ≥43dB |
9 | Fire resistance limit | ≥1 h | ≥ 1h |
MAIN TECHNICAL SPECIFICATION
The length of the production line:38000mm × 2200mm × 2800mm
Total Weight: about 24000KG
Main Power: 35KW
Working Speed: 4m/min
Material : 45# steel, quenched HRC 58-62
Electric Standard: 380V / 50 HZ / 3 PHASE
Feeding Width: 1150mm /1200m
Effective Width: 950mm
Thickness of the coil: 0.3-0.8mm
Density of EPS:18KG/M3
Output: 600,000m2 per year
Thickness of the material:0.4-0.8mm
Width of Material:1200mm Max
Core Material:EPS Board
Production line speed:3-5m/min
Production width:1000mm/960mm
Production thickness:50mm-150mm
EPS Sandwich panel machine is made up of color of tiles and core of
EPS
Application: Public construction, roof and wall of workshop,
building, both etc
Function:wall panel ,roof panel
Characteristic:quick construction ,everlasting,beautiful
