    Mgo Board Production Line , Dual Channel Roll Style System Lightweight Wall Panel Machine

    Ask Lasest Price
    Brand Name : chuangxin
    Model Number : XD-1
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets per year
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    Mgo Board Production Line , Dual Channel Roll Style System Lightweight Wall Panel Machine

    Mgo Board Production Line , Dual Channel Roll Style System Lightweight Wall Panel Machine


    Fireproof Decoration Magnesium Oxide Board Production Line With Larger Capacity


    Thermal Expansion Hot/Cold0, 01 mm/mC (from temp +20C to -20C)
    Expansion in Waterless than < 0.02% from ambient to saturation
    Freeze / Thaw - UNI EN 520100 cycles without notable effects
    Frost Resistanceno water drops form on surface
    Combustibility / Fire Ratingsnon-combustible / 12mm exceeds 1 hr fire rating
    Dimensional tolerancethick 0.2mm / width 2mm / length 3mm / Sq. 3mm
    Toxicity Pollutants Heavy Metals - UNI EN 12457-2Below measurable levels of test instruments
    Asbestos AnalysisAbsent - not measurable
    Formaldehyde AnalysisAbsent - not measurable
    Sound Attenuation (9mm)tested design ASTM E90 = STC 48, 50, 55, & 60
    ColorSlate Grey and Chalk White
    Surface texturesmooth one side; uniform machine textured back
    Basic Compounds(MgO)+(natural silicates)+(glass fibre)+(wood fibre)
    MGO Board/Magnesium Oxide Board/Fireproof Board for Interior and exterior wall

    >Magnesium oxide board also called MGO board and fireproof board. It is manufactured by using special craft through totally automatic product line. The features being green and 100% non asbestos.
    >Composition
    The materials of magnesium fireproof board are Magnesia(MGO), Magnesium Chlorid(Mgcl2)and Alkali glass fiber net.

    >Main characteristic:
    1. Fireproof-Grede A
    2. Moisture resistant
    3. Excellent impact resistant
    4. Excellent sound insulation
    5. 100% no asbestos
    6. Light weight and easy to work

    >Size:
    *Thickness: 3mm-25mm
    *Standard size: 1200*2400mm; 1220*2440mm
    *The Max length is 3660mm and the max width is 1220mm
    *other sizes can be cut as per requirements.
    *Surface treatment: Slurry, Non-slurry and Laminated with HPL and PVC
    *Backside treatment: Texture and sanded
    *Edge: Square/Tapered/Beveled/grooved

    Application:
    >Part ion wall indoor and outdoor
    >Ceiling
    >Acoustic perforated wall
    >Core of fireproof door

    Product Description
    Wall panel production line:
    Main System:
    Molding machine/mixing system/grouting system/demould machine for wall panel drawing out/turnover system
    Overall dimention of the moulding(mm)3030x2500x1200
    Total power23KW
    Power of heating system(KW)20
    Power of hydraulic system(KW)3
    Hydraulic working pressure(Mpa)8
    Maximum Hydraulic
    working pressure(Mpa)
    16
    Capacity of hydraulic tank (L)70
    Wall panel size/Qty50mm10pieces
    100mm10pieces
    150mm7pieces


    1. Production line has good design, reasonable structure, stable running and using dual-channel roll-style system. It is shaped in one time and has stable thickness. Also it has higher yield. with a vibration device, it eliminates the inside and outside bubbles. It can produce 2-60mm thickness MOG board. And the widest is 1300mm, for the length, there is no limits, and can adjust the thickness as required.
    2. The equipment can have many uses. It can produce the simulation ash board, imitation red/white elm board, Oak panels, fireproof relief door board, ceiling board and wall murals etc.
    3. Simulation Ash board, it has high quality cooperation with wood ash board appearance. Can do further work such as nail, sawing, planning, and sticky. Size: 1200*2440*3mm (can adjust). Daily can produce 200-1200 PCS according to different devices.
    4. Fire Relief door board: Has ability of fire resistant, moisture resistant, sound insulation and thermal insulation. Also can do nail, sawing, plane, sticky work. The cost is half of wooden door board. The imitation of Europe and classical three-dimensional pattern is very elegant and antique.
    5. Decorative Wall Murals: First get board from laminator machine, veneer on above and then finish to produce landscapes, insects and fish paintings. The biggest size is 1200*2500mm.
    6. For MOG Board Production line, there are several departments: Produce departments, finished products department and raw materials department. Workers need: 3-6
    7. Electricity: 1.1_10KW
    8. Machines: High-speed mixer, 500type raw materials mixer, pulverizer, mould receiving machine, raw materials lifter, forming machine, foaming machine, oil-spreading machine, automatic cutter, double location receiving board system, automatic board-unloading unit, mould-cleaning machine, automatic four-edge cutting machine, dust-collection system, operation platform, PLC self-controlling system
    9. There are many mould machines for customer to chose. Also can buy single machine.
    10. Buying the production line includes the technology transferring costs.
    11. Cultivate 2 technicians for customer side, and time is 7 days.

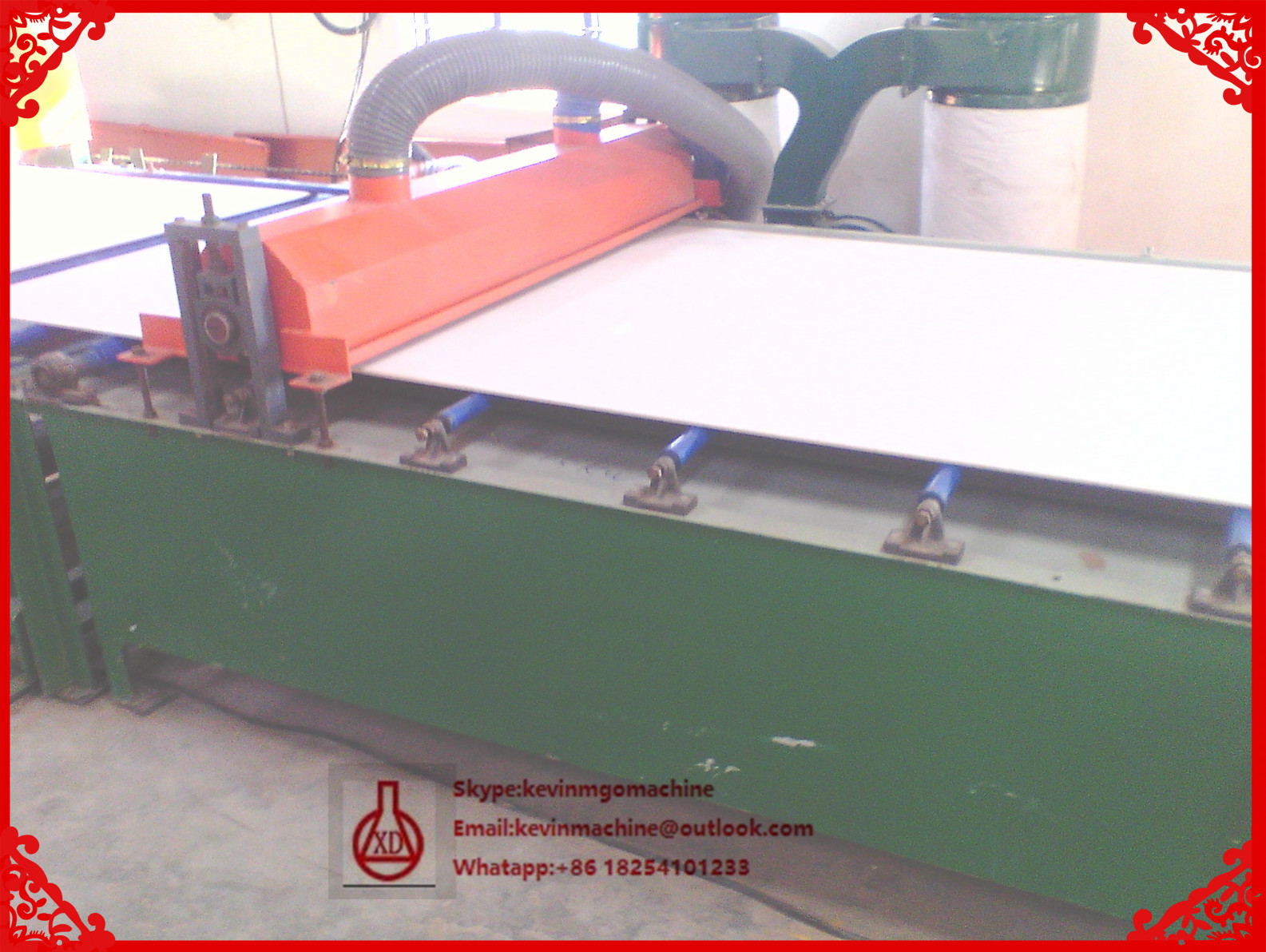

    MGO BOARD MACHINE
