    Building Moulding Wall Panel Making Machine with 1000 Sheets Production Capacity

    Ask Lasest Price
    Brand Name : chuangxin
    Model Number : XD-A
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets per year
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    Building Moulding Wall Panel Making Machine with 1000 Sheets Production Capacity

    Building Moulding Wall Panel Making Machine with 1000 Sheets Production Capacity


    Mgo board making machine automatic
    MGO BOARD PRODUCTION LINE
    100% Non-asbestos
    Fire retarancy: Grade A
    Dnsity: 1080kg/m3
    Bending strength: 21MPa
    Tensile strength: 9.5MPa
    Water absorption: 21.2%
    Aqueous alkali out resistance: No water and no dampness
    Impacting strength: 6.8KJ/m2.

    Frost-resistance: 25 times circulations later, No delaminations and no chaps.
    Noise reduction: 42dB(9 mm wall partition system)
    One hour of fire rating for(9mm wall partition system)
    Edge: Squared; Bevelled; Tappered.
    The details as follows:

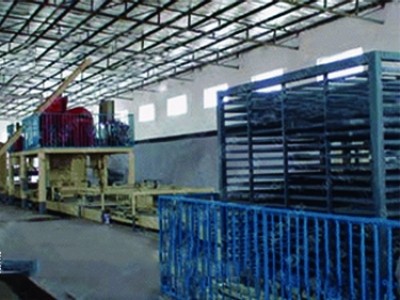

    The size of MGO board production line is 15m*1.4m*0.8m(length*width*height), and the size of the workshop is 60m*15-20m*6m, we need total 30 workers to operate the whole production line. The production line which I give you could just produce the common size of board of 1220*2440*3-20mm, you also could produce the sizes as you want.

    mgo board machine

    Productivity: 1200-1500PCS/day
    Raw material: MGO, mgcl2, glass fiber cloth, non-woven, wood chips and perlite.
    MGO: The MGO from making the foreproof board is the light burning(also called burning) power, contain 85% MGO, and the LOI(loss on ignition) is 7.
    Mgcl2: The price of mgcl2 is about USD140/ton
    Perlite: Frankly speaking, the perlite is not very important for MGO board, it just have the function to reduce the weight of the board. The price is USD20/m3
    Glass fiber: USD 1.3/m for the 1.3*1m
    Non-woven: USD 0.07/m for the 13*1m
    Wood chips: It is much cheaper in your native country.
    Power input: 20 kilo watt.
