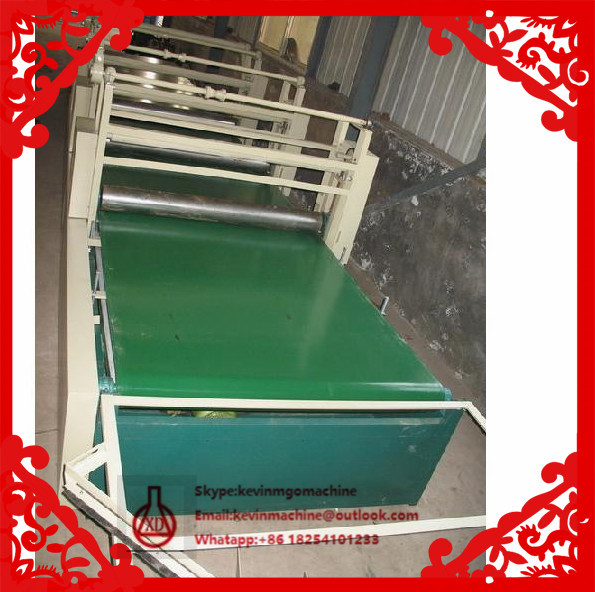

1.15 m / 1.2 m Feeding Width Fiber Cement Board Production Line for
Public Construction
Material : 45# steel, quenched HRC 58-62
Electric Standard: 380V / 50 HZ / 3 PHASE
Feeding Width: 1150mm /1200Mm
Effective Width: 950mm
Thickness of the coil: 0.3-0.8mm
Density of EPS:18KG/M3
Output: 600,000m2 per year
Thickness of the material:0.4-0.8mm
Width of Material:1200mm Max
Core Material:EPS Board
Production line speed:3-5m/min
Production width:1000mm/960mm
Production thickness:50mm-150mm
EPS Sandwich panel machine is made up of color of tiles and core of
EPS
Application: Public construction, roof and wall of workshop, building, both etc
Function:wall panel ,roof panel
Characteristic:quick construction ,everlasting,beautiful
Working flow:
| Item | National Standards | Testing Indexes |
| 90mm | 90mm |
| 1 | Anti-impact Capacity | ≥5 | ≥10 |
| 2 | Anti-bending damage load | ≥1.5 | ≥4 |
| 3 | Compressive strength/Mpa | ≥3.5 | ≥5 |
| 4 | Softening coefficient | ≥0.80 | ≥1 |
| 5 | Facial surface density g/cubic meters | ≤90 | ≤70 |
| 6 | Water absorption | ≤10 | ≤9 |
| 7 | Drying shrinkage% | ≤0.6 | ≤0.5 |
| 8 | Hanging force/N | ≥1000 | ≥1500 |
| 9 | Sound insulation/dB | ≥35 | ≥50 |
| 10 | Fireproof limit/h | ≥1 | ≥3 |
| 11 | Heat transfer coefficient w/m2 | ≤1.0 | ≤1.0 |
| 12 | Radioactivity limit | ≤1.0 | ≤1.0 |
| 13 | IRa(interior radiation indexes) | ≤1.0 | ≤1.0 |
| 14 | lr(exterior radiation indexes) | ≤1.0 | ≤1.0 |
1 | Air-dry density | ≤ (Standard index) 50kg/m2 | (Test Value) 30.0kg/ m2 |
2 | Drying shrinkage rate of the board | ≤0.08% | 0.015% |
3 | Anti-breaking load | ≥1400N | 5640N |
4 | Anti-impact | No breakage phenomenon such as cracking after three impacts | No breakage phenomenon such as cracking after three impacts |
5 | Thermal resistance of main section (T=90mm) | ≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
6 | Thermal bridges area ratio | ≤8% | 2.22% |
7 | Sound insulation Index |
| 36dB |
8 | Radioactivity |
| None |
III Feature
1. Anti-earthquake with light weight: In view of its weight per
unit area is only 1/10 of red brick wall, the product has good
anti-earthquake performance. It can be used at low-rise building
and high-rise building, and it is preferred to be used at workshop
with steel frame structure. It can replace the color steel plate
with its better performance.
2. Fast and convenient operation: It can be installed by board or
combination with the dry method, and the product can be nailed,
cut, planed, drilled and stuck.
3. Low comprehensive cost: The product is made of agricultural and
industrial wastes, so the production cost is low. With the low load
of girder and short construction period, it can reduce over 20% of
engineering cost after compared with solid brick and hollow brick.
4. Energy-saving and environmental protection: The production
processing need no high temperature and high pressure. Being a
green environmental-protection energy-saving building materials,
the product has no toxicity, harm, pollution and radioactivity.
5. Increasing the usage area: Under the same condition of
heat-preserving and sound insulation, with the thinner plate, the
product can increase over 10% usage area after compared with the
same building.
6. Having the following features: fireproofing, water-proof,
anti-impact, acid & alkali resistant and anti-aging.
