Automatic Eps Sandwich Panel Mgo Board Production Line for Cement /
Mgo / Wood Saw Powder

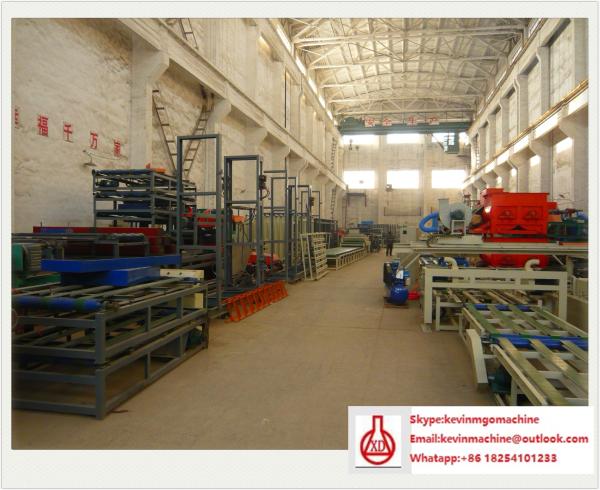

factory automatic mgo board production line in China building
material machinery
We not only can supply automatic mgo board production line in China
,but also raw materials and technology for manufacture magnesium
oxide boards.
We are professional manufacturer of different kinds of lightweight
wall panel machines----precast hollow core wall panel machine, eps
concrete sandwich wall panel machine, ceramsite block machine,
fence wall panels made of construction waste etc. Our advantage is
that we not only make the machines, but also make the panels, so we
have rich experience.The most important part of our advantage is
not only about the machine, but also about the formulation. How to
make the best-quality panels at the lowest price according to the
materials which the customers have in their countries is our main
purpose. We can make the best formulation for our customers because
we have rich experience in this field. The materials of making this
kind of panels can be cement, fly ash, leca, perlite, eps, gypsum,
Mgo, Mgcl2/Mgso4, wood saw powder, crushed plant straws, etc.
1) Product quality: product quality is priority to the
international standard GB/T9775-1999 (equal to European Standard).
2) The gypsum board which produced by the gypsum board production
line is heat-resistant, fire-resistant, insulated, light,
nonpoisonous, little pollution, adjusting the humidity of the room.
3) We can offer a basket of services of design, producing,
installation, commissioning and training, as well as turnkey
project for customers.
No. | Test Item | National standard | Wall panel testing |
1 | Compressive strength | ≥3.5MPa | ≥3.7MPa |
2 | Drying shrinkage | ≤0.6mm/m² | 0.37mm/ m² |
3 | Hanging force | ≥1000N 24hours No 0.55mm crack in 24hours | ≥1000N 24hours No 0.55mm crack in 24hours |
4 | shock resistance | without crack shocked by 30kgs sandbag five times | without crack shocked by 30kgs sandbag five times |
5 | The bending failure load | ≥1.5 times of the self weight of the wall panel | ≥2.5 times of the self weight of the wall panel |
6 | radioactivity | Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 | Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 |
7 | density | ≤90kgs/m² | ≤43kgs/m² |
8 | Air insulation of sound | ≥35dB | ≥43dB |
9 | Fire resistance limit | ≥1 h | ≥ 1h |
