Decoration Panel Roofing Sheet Making Machine with Double Roller Extruding Technology

fireproof panels waterproof wall board decorative magnesite panel fiberglass mgo board machine/equipment/machinery/ prod

Specifications

1) Wide raw material resource
2) Easy process technology
3) Skillful installation engineer

Required Raw Material	Glass Magnesium Board is made of filling materials, such as sawdust or all kinds of crushed plant straw (you can select any one kind ) and several chemical raw materials which are token as modified material after special technology.
Technical Index for finished board	1. Oxygenic index%: 90 2. Level combustion: SO 3. Vertical combustion: SO 4. Water content rate: 10.9% 5. Capacity: 1.15g/cm3 6. Static bending intensity: 169.46Mpa 7. Density: T/ m3 1.13 8. Water resistance: Without chalking for 24 hours and there is no change on surface 9. No Three-wastes (waste water, waste gas and waste residue), no pollution and environmental protection.

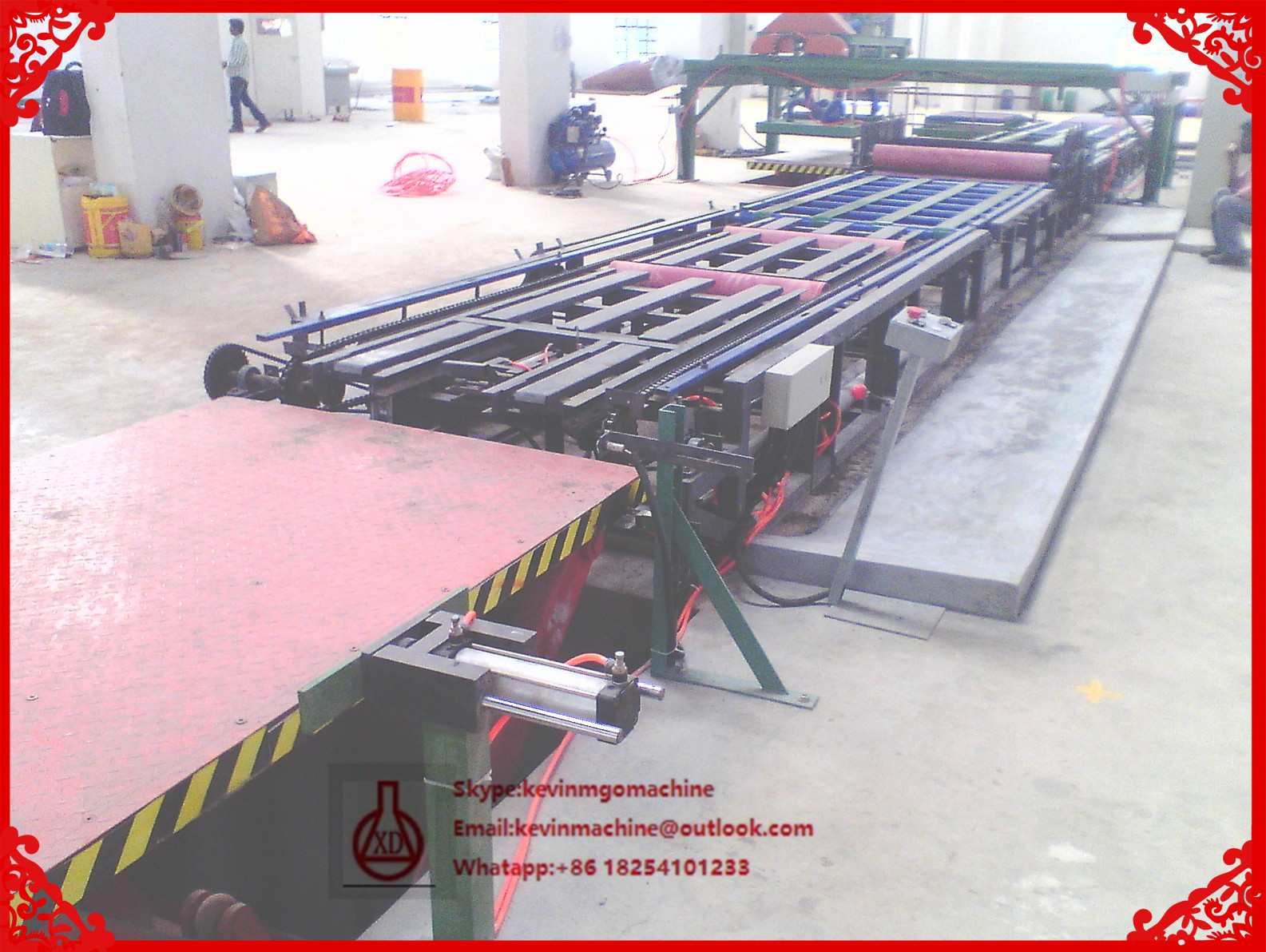

Structure Principle for Machine	Magnesium Oxide Board Machine with fashionable design, reasonable structure, stable running manufactured board of even thickness in large production once through double- roller-extruding technology. This production line is equipped with shaking device which remove inside and outside air bubble, so our board is more compact. In addition, we use the no-woven cloth as the separating film to increase the toughness and strength of the board. The machine can be adjusted arbitrarily, and then produce the board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will.

Main equipment list:

Item	Equipment name
Dosage control system	Automatic batch turning system Microcomputer control system Dust collection system Elevating conveying system Automatic measure system Shell fabric mixing system Middle material mixing system Pulp stock mixing system Accessories dressing by screen system Blending agent dessolving system Blending agen dessolving and automatic measurement system
Forming system	Vaccum compressed air control system Automatic mould system Forming conveying system Rolling forming system Automatic cutting board system Automatic collecting board twinlift system Computer touching control system Speedup rod road Loading vehicle changing tracksystem
Curing system	Constant temperature system in curing room Curing room automatic humidity controlled system Automatic stripping system Automatic stacking board system Forklift
Arranging board system	Rod road conveying system Horizontal and perpendcular high speed cutting machine Landscape orientation conveyor Sanding machine Dust colletion system Microcomputer self-control system Power distributing system
