    Multi Function MGO Board Construction Material Making Machinery With 3 - 30mm Thickness

    Ask Lasest Price
    Brand Name : chuangxin
    Model Number : XD-1
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets per year
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    Multi Function MGO Board Construction Material Making Machinery With 3 - 30mm Thickness

    MGO Board Construction Material Making Machinery With 3 - 30mm Thickness


    Specifications:

    1220X2440, 1200X2500/2600/3000, 900X1800, 900X2400 (mm) etc.

    Thickness: 3-30(mm)
    Other size is avaliable.


    Main usage:

    Magnesium oxide board have been used primarily as fireproof materials for walls and ceilings in office buildings, apartment complexes, residential constructions, hotels, theatres, restaurants, railway stations, airports, scientific research institutions, schools, hospitals, and stadiums. Some patterned products have been used as decorative boards.

    It also can be used as an interlayer for building, movable partitions, sound-absorbing structures, sound insulation structures, heat insulation and preservation structures, sign boards, fireproof partition walls, low fencing partitions, fireproof pipeline, fireproof doors, cornice baffle boards, public restroom dividers, baseboards, truck cabinets and billboards etc.

    After purchased the equipment, we will teach relevant technology for free, and will

    go to your factory for installation and testing until you can produce the qualified

    product by yourself. Our company will train 2-3 technical personnel for free until

    he can get the skill. We will take responsibility for provide technical consultation

    and following-up service for a long time, the equipment warranty period is one year

    Test we can do before delivery:

    Fireproof board test report
    Test standard: JC688_2006 < MGO board standard >
    Specification10mmProduce date2014.08.06Test date2014.09.01
    Test itemTechnical requirementTest resultsResults
    Density (t/m 3 )
    1.0Qualified
    Bending strength(MPa)≥1014Qualified
    Impact strength
    (KJ/M2)
    ≥2.56.5Qualified
    Moisture resistanceNo moistureNo moistureQualified
    Water content (%)≤85.7Qualified
    Contraction rate when heated (%)≤0.30.10Qualified
    Expansion when put into water (%)≤0.60.13Qualified
    Water absorption (%)≤2810Qualified
    Crisp coefficient≥0.71.3Qualified
    Warp when heated (‰)≤3(Corporation standard )0.12Qualified
    Put out of nailsE<66<e<10
    E >10
    25Qualified
    ≥25≥20≥15

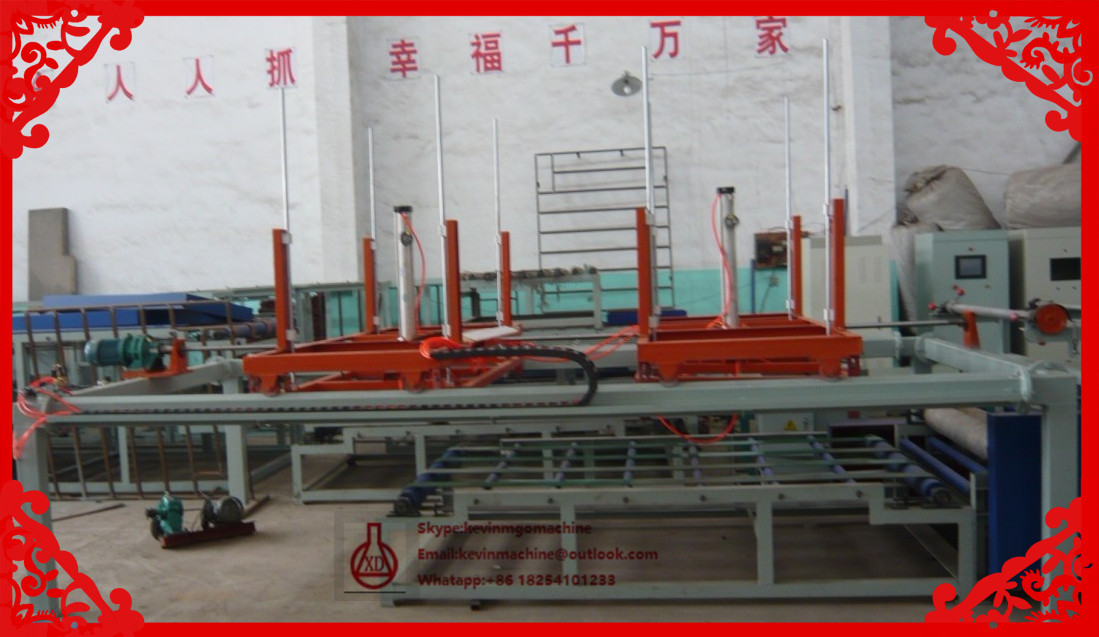

    mgo board machine mgo board production line
